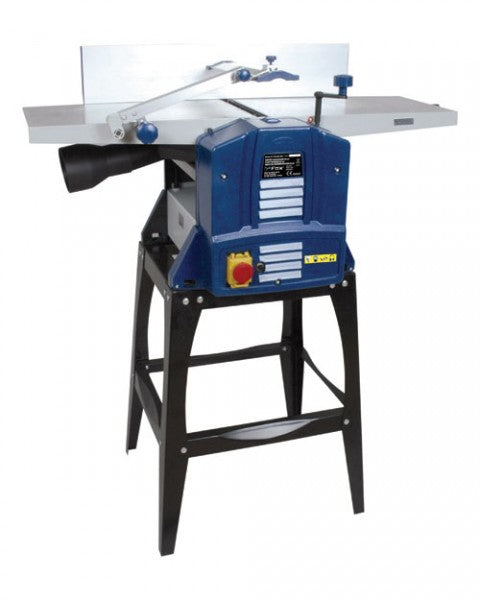

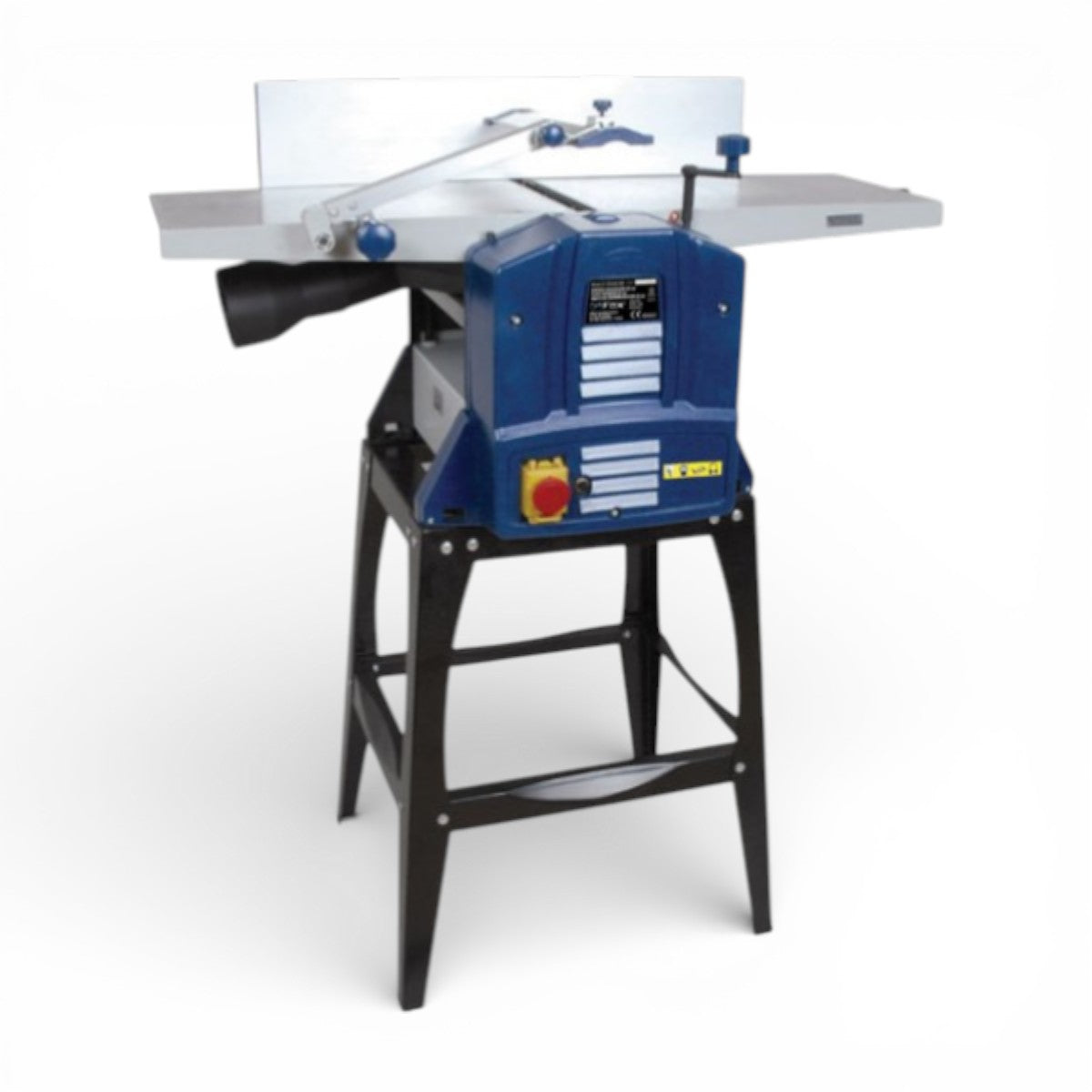

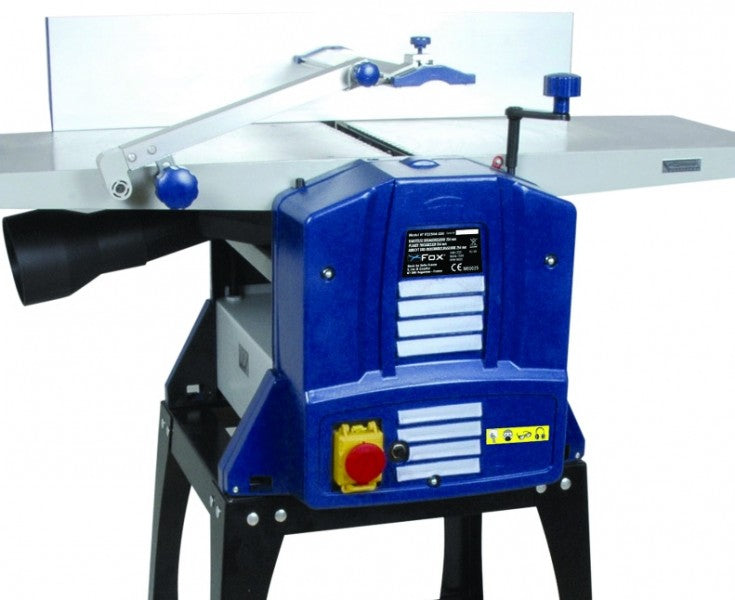

Fox F22-564-250 Planer Thicknesser 230v 50Hz 1500W Woodworking Machine

F22-564-250 10″ x 5″ Planer Thicknesser 240V

The F22-564-250 is the ideal planer/thicknesser for a busy workshop. This truly professional woodworking tool is sturdy enough to manage the hardest jobs with ease.

• Maximum cutting width of 250mm
• Large cast aluminium planer bench measuring 920 x 262mm
• Thicknesser cutting capacity height of 120mm
• Strong aluminium tilting fence
• 100mm dust port

Technical Specs
Barcode: 3700209502530
Motor: 1280W – 240V (1.5hp)
Blade Size: 261×16.5×1.5mm
Block Speed: 9000rpm
Max Planing Width: 250mm
Max Cutting Depth per Pass: Thicknesser: 3mm, Planer: 2mm
Feed Rate: 6m/min
Range of Cutting Depth: 5-120mm
Table Size of Thicknesser: 270x290mm
Table Size of Planer: 920x262mm
Aluminium Parallel Fence Dimensions: 635mmx124mm
Dust Port Diameter: 100mm
Dimensions (h x l x d): 1100x970x520mm
Weight: 36kg
Dimensions: 97 × 52 × 110 cm
